MAGNETIC SYSTEM 30MM

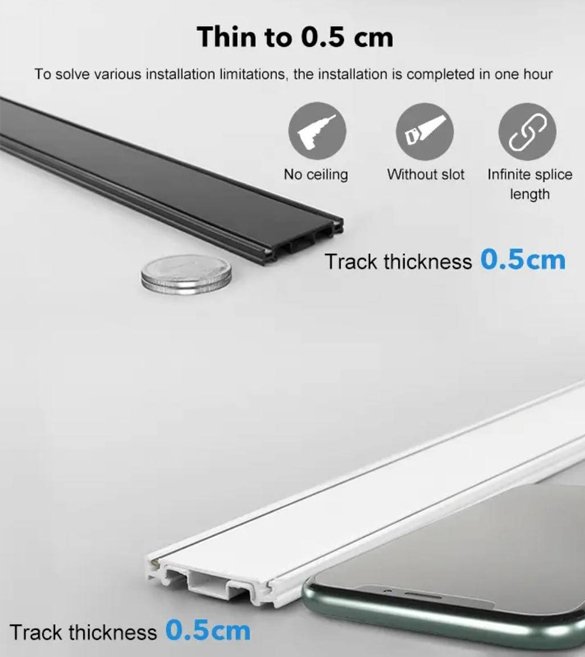

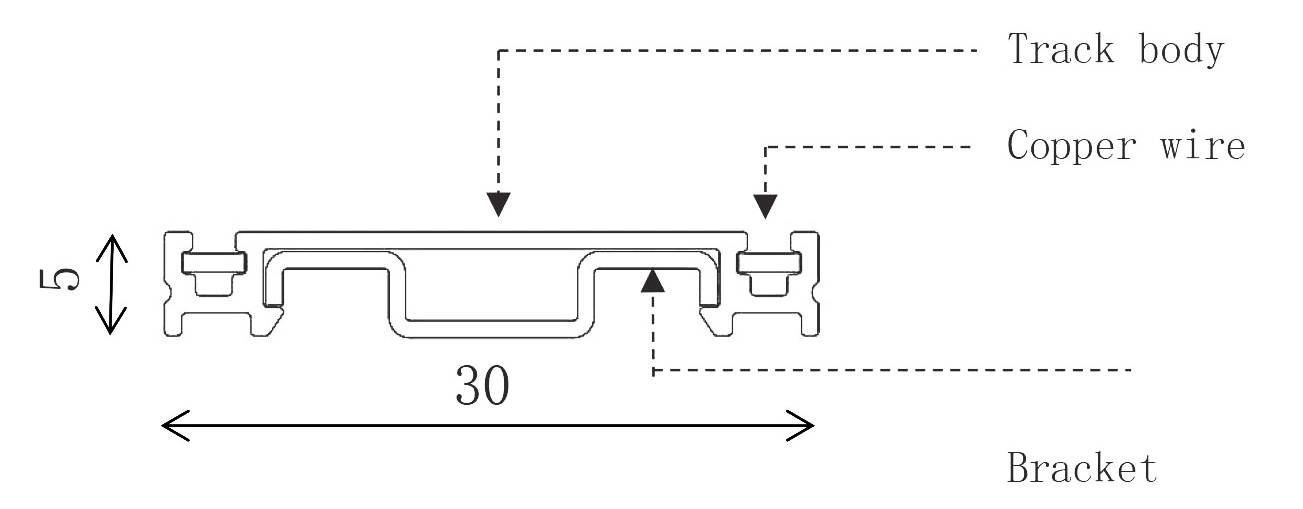

Ultrathin Magnetic Track

  • Model No.: GL30
  • Colour: White
  • Input Voltage: DC48V
  • Material: PVC & Iron & Copper
  • Dimension: 30*5mm
  • Length: 2000mm

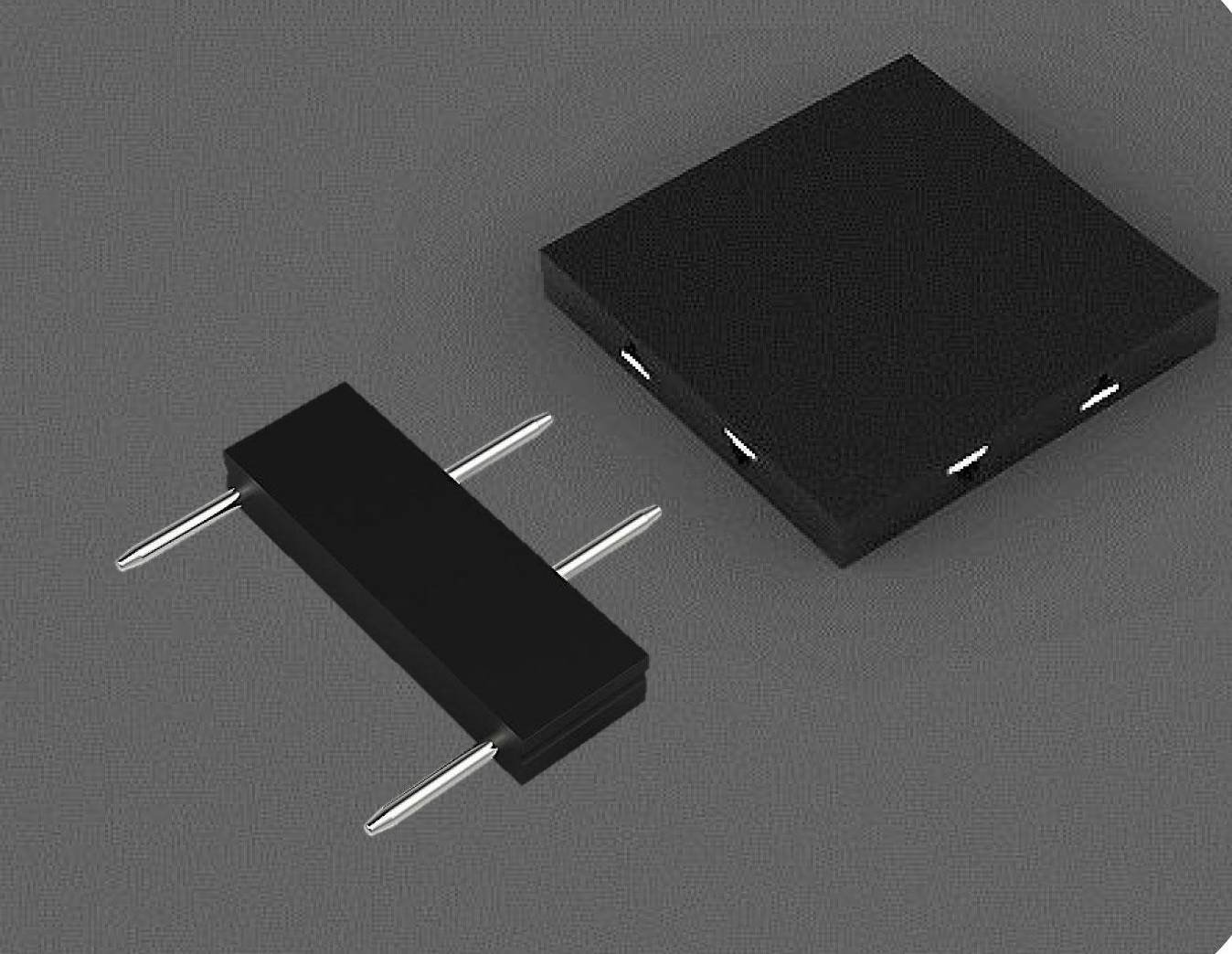

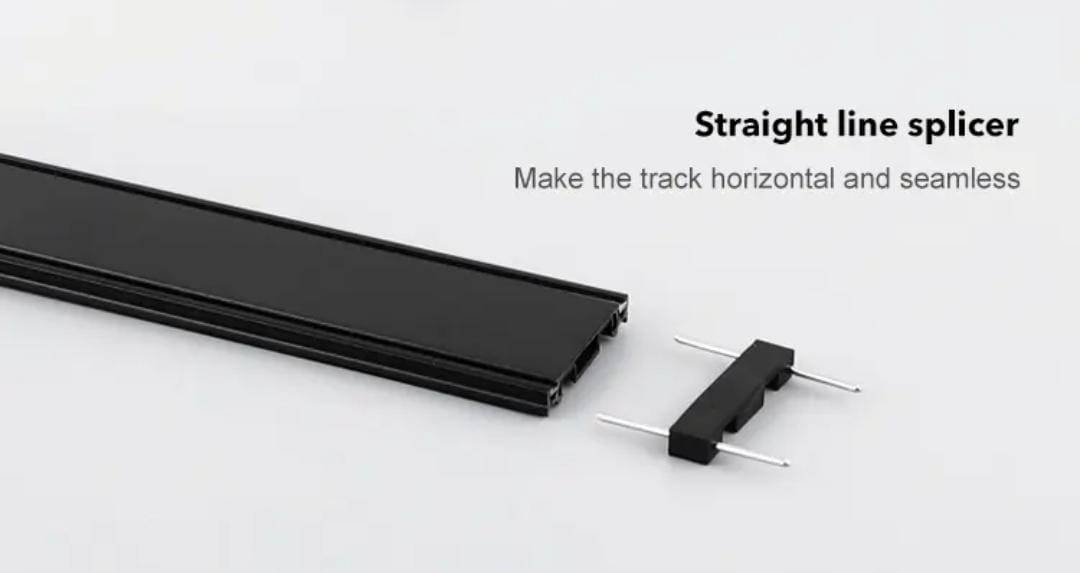

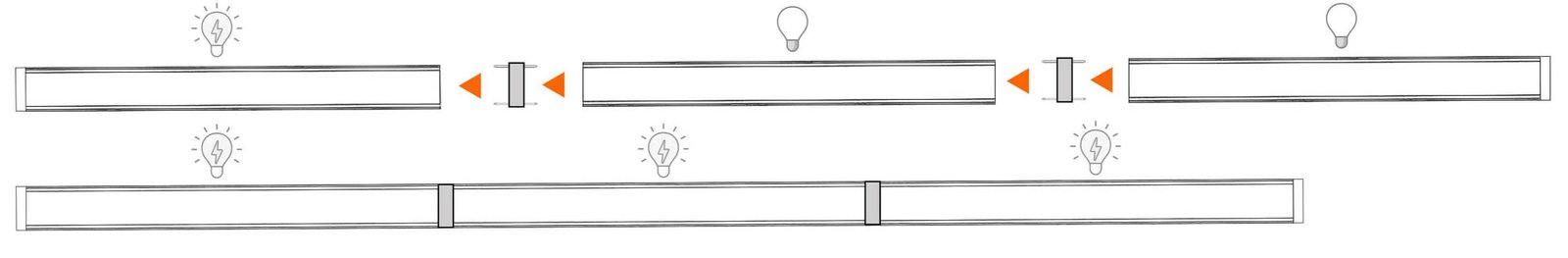

Straight Connect Module

  • Model No.: GL Straight Connect Module
  • Colour: White
  • Material: PVC & Copper
  • Dimension: 30*30*5mm

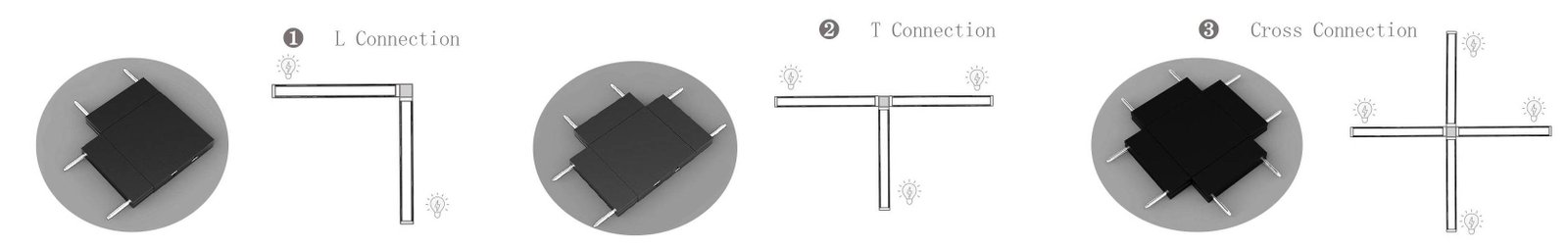

Cross Connect Module

  • Model No.: GL Cross Connect Module
  • Colour: White
  • Material: PVC & Copper
  • Dimension: 30*30*5mm

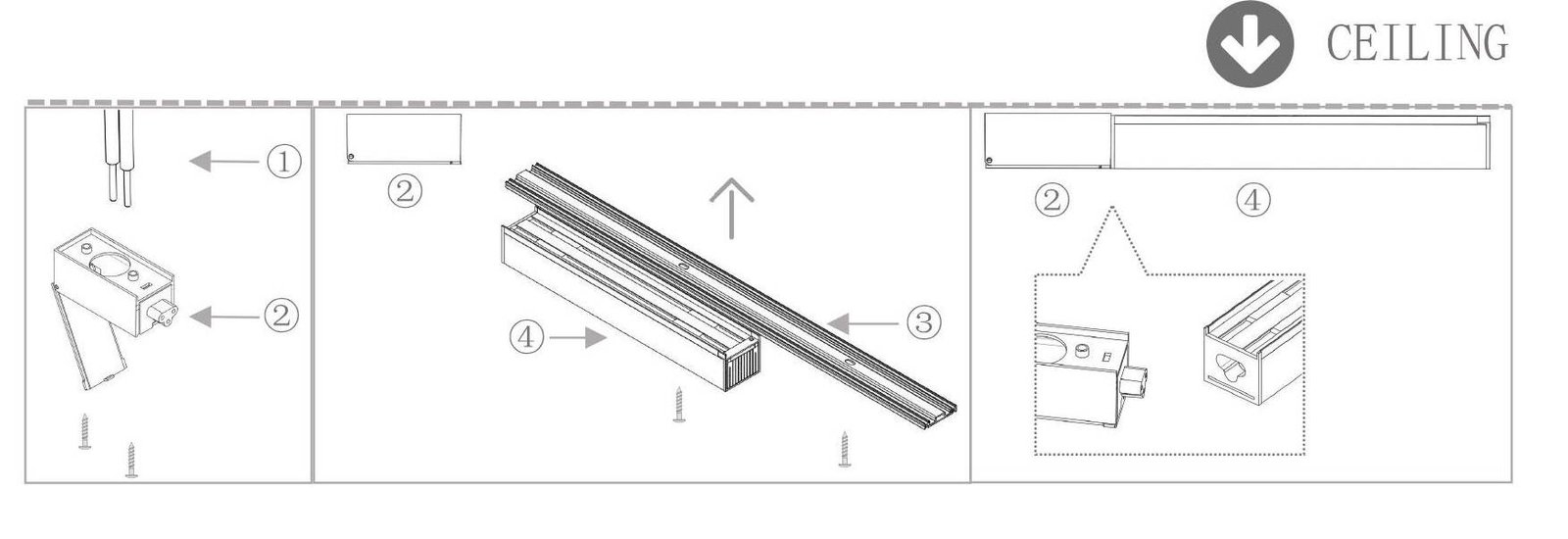

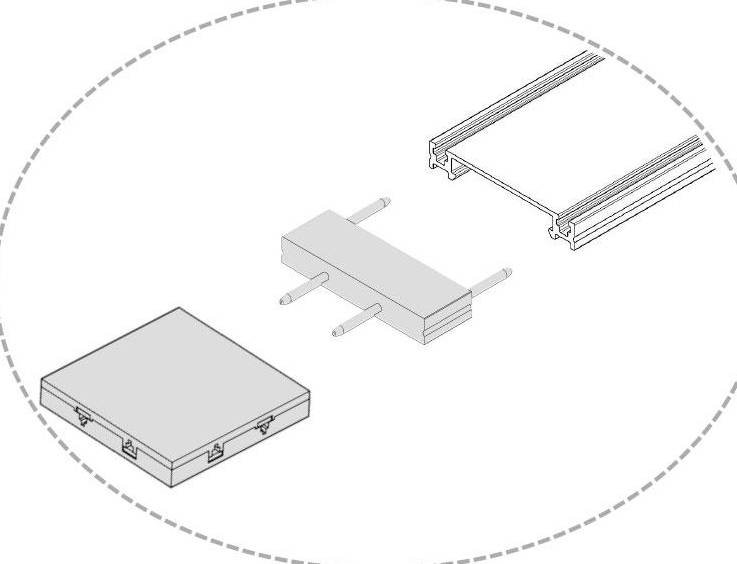

Insert the copper pin of the module in the track under the copper bar

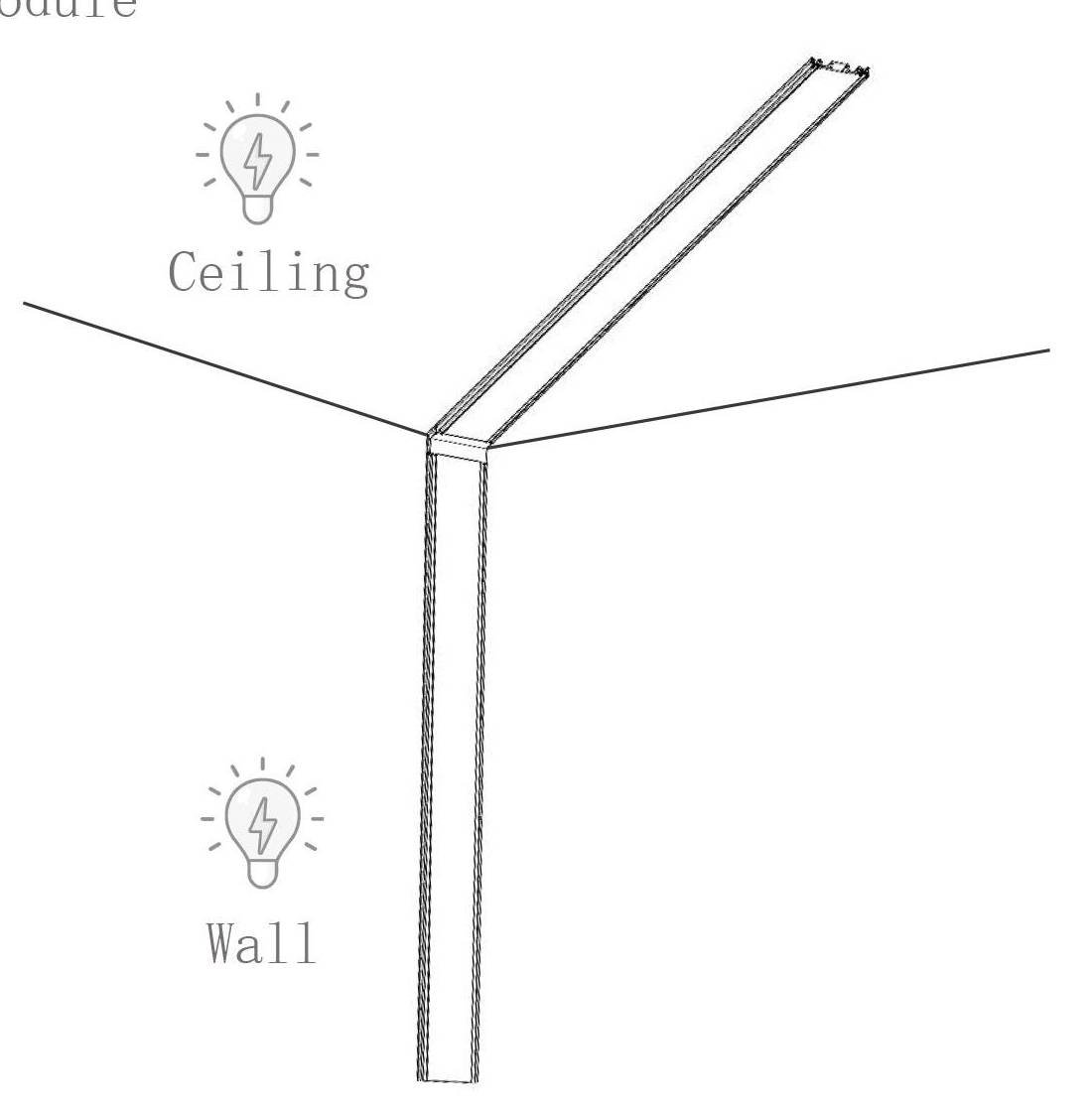

In&Out Connect Module

  • Model No.: GL Cross Connect Module
  • Colour: White
  • Material: PVC & Copper
  • Dimension: 30*25*25mm

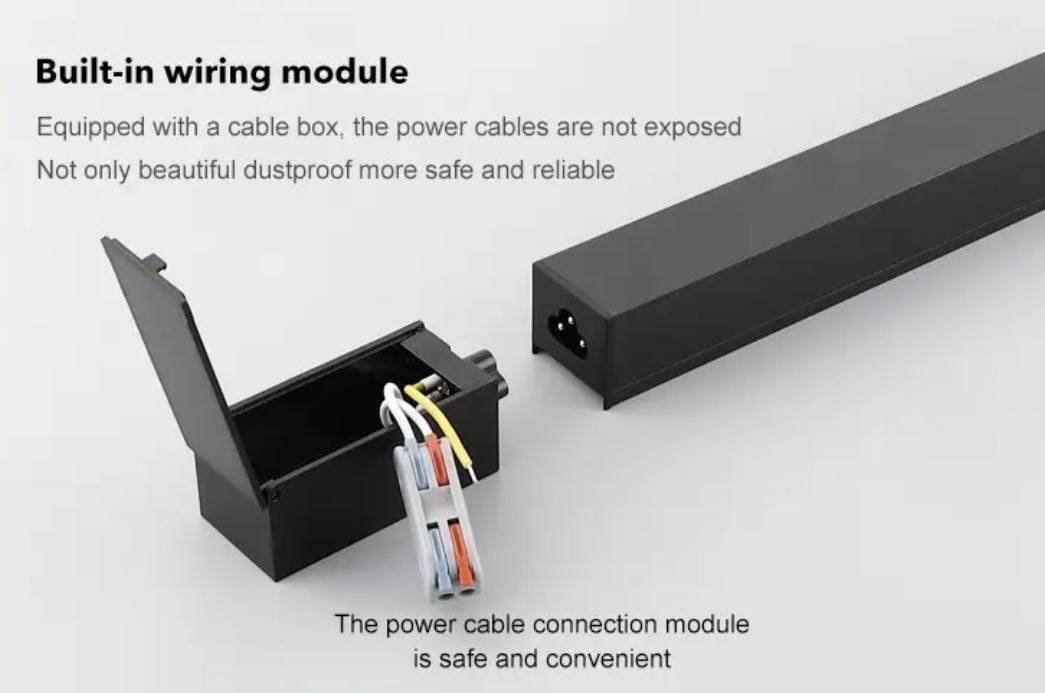

Power Supply 200w & 100w

Easy Replace

  • Model No.: GL30-PS100W GL30-PS200W
  • Colour: White
  • Input Voltage: 190-245Vac
  • Output Voltage: DC48V
  • Output Current: 2.1A 4.2A
  • Dimension: 32*31*282mm 32*31*352mm

Light Modules

Dif fused Model

Grille Model

Round Downlight

Square Downlight

Folded Grille Light

Rotatable Round Spotlight

Elfin Spotlight

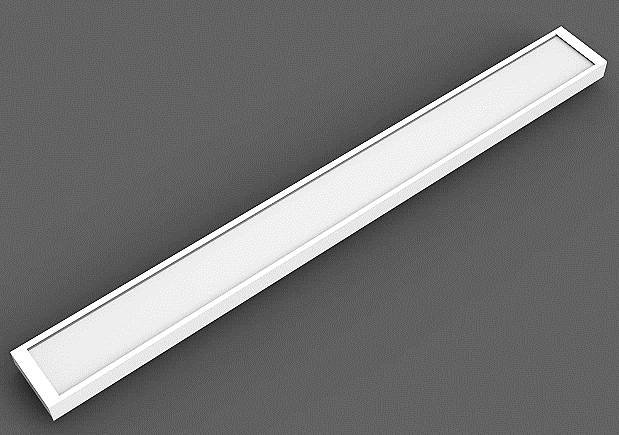

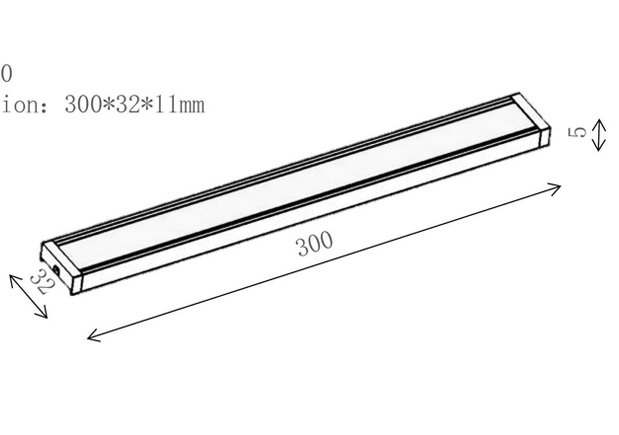

Dif fused Model

  • Model No.: GL30-DF300
  • Colour: White
  • Input Voltage: DC48V
  • Wattage: 10W
  • Beam Angle: 105
  • CCT: 3CCT TUNABLE
  • Ra: >90
  • Dimension: 300*32*11MM

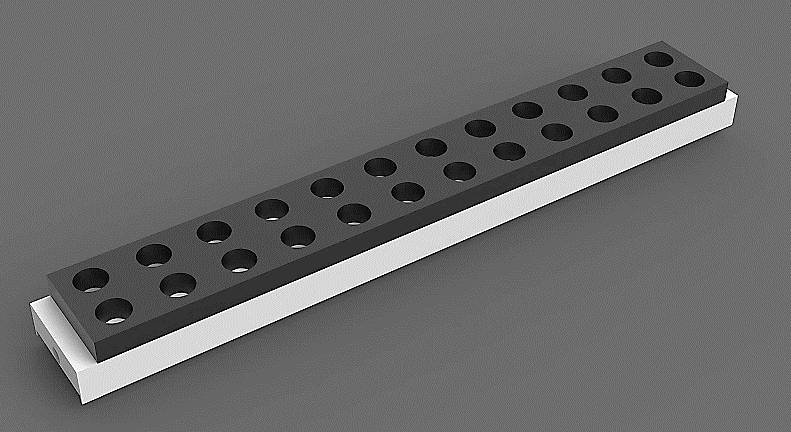

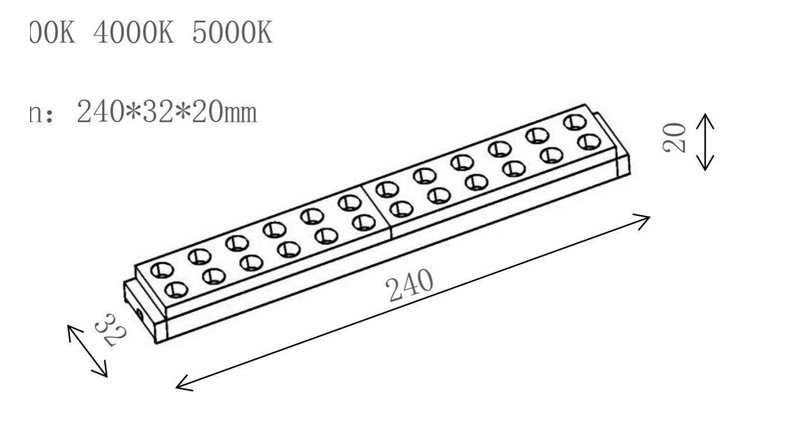

Grille Model

  • Model No.: GL30-LB24
  • Colour: White
  • Input Voltage: DC48V
  • Wattage: 10W
  • Beam Angle: 30
  • CCT: 3CCT TUNABLE
  • Ra: >90
  • Dimension: 240*32*20MM

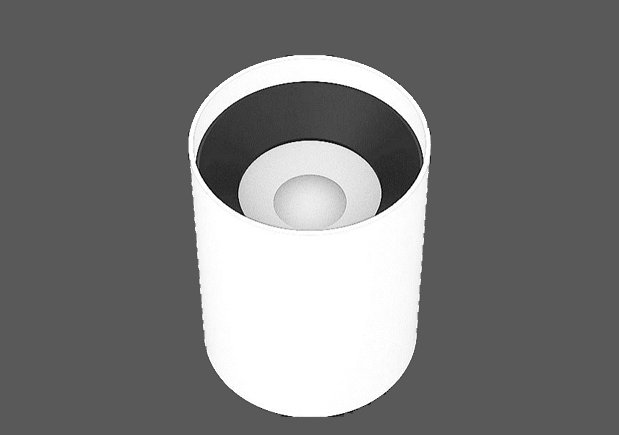

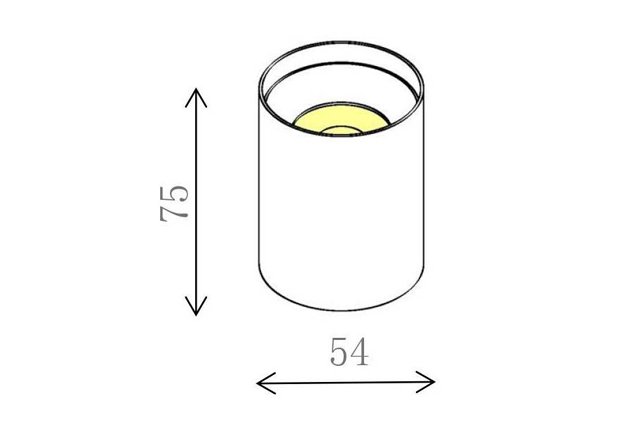

Round Downlight

  • Model No.: GL30-DR54
  • Colour: White
  • Input Voltage: DC48V
  • Wattage: 8W
  • Beam Angle: 24
  • CCT: 3CCT TUNABLE
  • Ra: >90
  • Dimension: 54*75MM

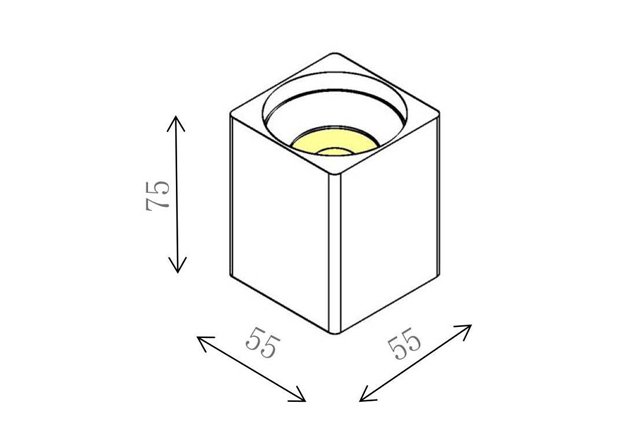

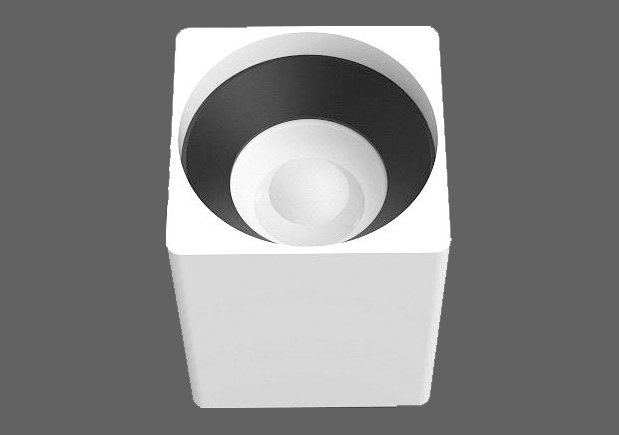

Square Downlight

  • Model No.: GL30-DS54
  • Colour: White
  • Input Voltage: DC48V
  • Wattage: 12W
  • Beam Angle: 24
  • CCT: 3CCT TUNABLE
  • Ra: >90
  • Dimension: 55*55*75MM

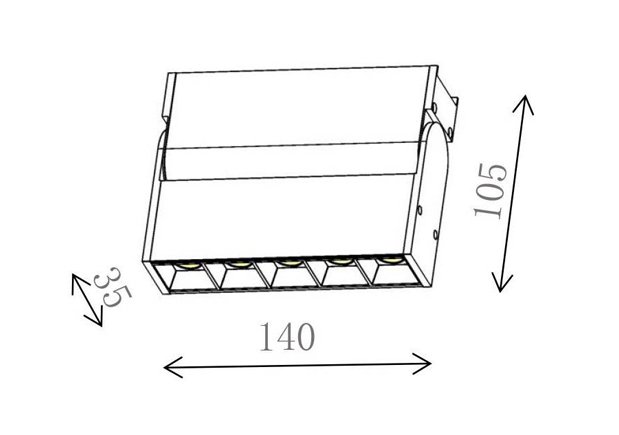

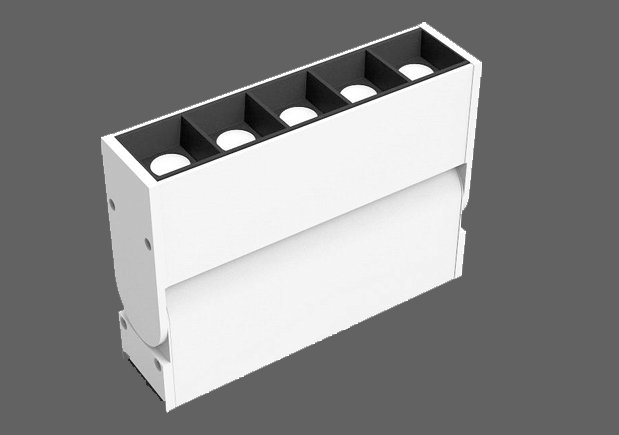

Folded Grille Light

  • Model No.: GL30-FD5
  • Colour: White
  • Input Voltage: DC48V
  • Wattage: 10W
  • Beam Angle: 30
  • CCT: 3CCT TUNABLE
  • Ra: >90
  • Dimension: 140*35*105mm

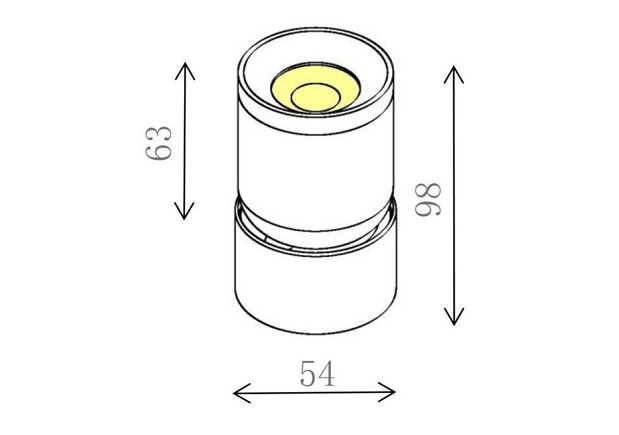

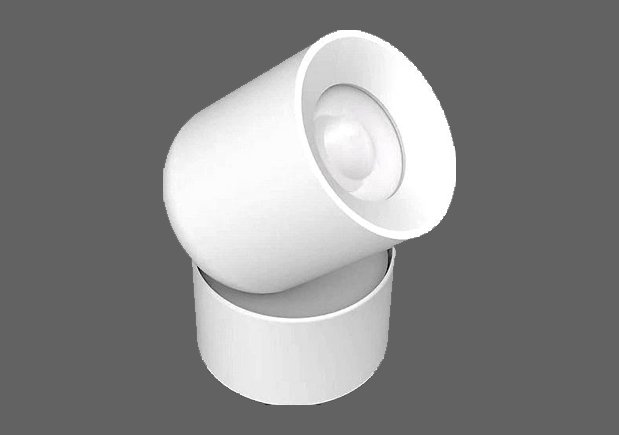

Rotatable Round Spotlight

  • Model No.: GL30-DR54R
  • Colour: White
  • Input Voltage: DC48V
  • Wattage: 7W
  • Beam Angle: 24
  • CCT: 3CCT TUNABLE
  • Ra: >90
  • Dimension: 54*63*98mm

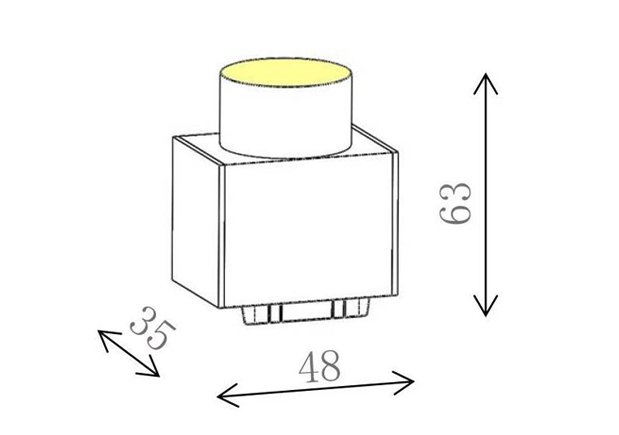

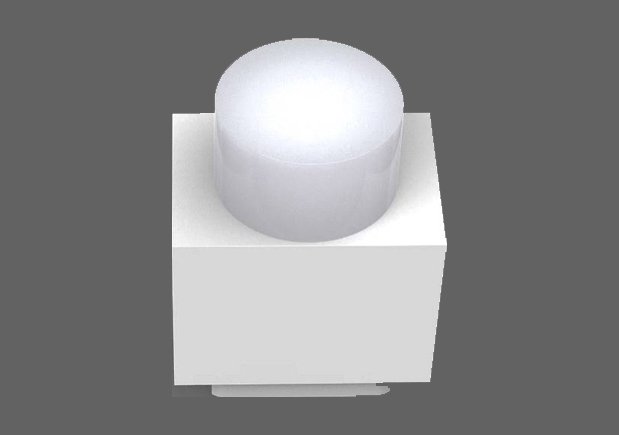

Elfin Spotlight

  • Model No.: GL30-SP1
  • Colour: White
  • Input Voltage: DC48V
  • Wattage: 6W
  • Beam Angle: 30
  • CCT: 3CCT TUNABLE
  • Ra: >90
  • Dimension: 48*35*60mm
